Venus IRIDIUM + GPS Tracking Antenna - ALPHA 24 IR





Usage:
Terrestre
Mobile
Servicios:
Data
SMS
E-mail

Precio: 91,43 EUR +IVA

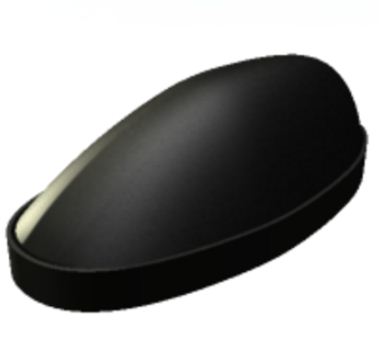

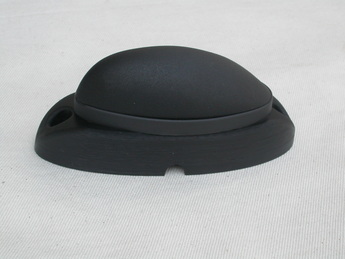

The Iridium VENUS IR antenna is based on a ceramic patch and patented filtering mechanism. The VENUS is a very popular design produced by Webb Industries for their GSM/GPS, GSM/GPS/WLAN range of antennas. Contact us for more details on this and other products for Iridium.Application:Tracking and Monitoring


Included in the Package:
Venus IRIDIUM + GPS Tracking Antenna
Precio: 91,43 EUR +IVA
EUR 109.72 (VAT included)
(USD 95.00)

*USTED DEBE HACER UNA OFERTA cuando usted necesita comprar accesorios especiales, como por ejemplo una antena y cable para que podamos darle el cable correcto para conectar la antena al dispositivo con todos los adaptadores que usted pueda necesitar.


Características:
MECHANICAL DATA
  • Operating Temperature -30°C to +80°C
  • Mounting The antenna is groundplane independent. Performance will vary unless the antenna has a clear line of sight with the horizon.
  • Cable Length Standard length is 30cm
  • RG174/RG174 - Iridium/GPS
  • Antenna Dimensions 110 x 55 x 35 mm
  • Drill hole 19mm hole
  • Connectors Typically SMA male on both
  • Cables* LMR240 cable extensions are available
Especificaciones:

ELECTRICAL DATA Iridium GPS
Frequency Range 1616-1626 MHz 1575 MHz
Element Gain (exl.cable) 4 dB 5 dBiC
Amplifier Gain  - 24 dB +/- 1 dB
Max. Axial Ratio - < 3dB
VSWR  1.5:1 < 2:1
Rated Power  10 W 1W
Polarisation RHCP RHCP
Voltage -  3-5 V
Isolation/Decoupling 12 dB 12 dB
Noise Figure  - 2 dB max.
Current Sink   < 20 mA
Amplifier DC Power  - 3 to 5 VDC on coax cable (+ve centre)
Impendance 50 Ohms 50 Ohms
