Suricate Pro iridium repeater - IRIDKIT01
Tweet
Foxcom’s optical system is the ideal solution for mobile satellite connectivity in ships, oil rigs, military bunkers and other underground facilities.
Foxcom’s fully integrated Iridium optical solution provides a cost effective alternative to coax cable deployments. Harnessing the superior performance of fiber optics, Foxcom’s solution provides a coax free solution for in-building mobile satellite coverage.

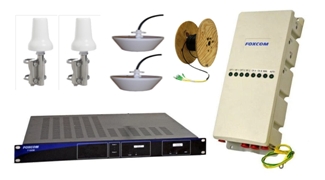

The kit consists of the IP65 rated 4005 series outdoor unit (ODU), a 7190M series chassis with dual power supply (PS), dual outdoor Iridium antennas and a Dual indoor ceiling mount antennas.
The fiber repeater solution provides seamless Iridium coverage within any building of any size. Multiple indoor antennas can be used with the use of power dividers to extend the signal coverage.
Iridium users can now enjoy the many benefits that optical fiber has to offer, such as improved signal quality, lightning protection, safety and ease of installation.
Suricate Pro iridium repeater
* E' BENE CHIEDERE UN PREVENTIVO quando dovete abbinare prodotti particolari come un antenna ed il cavo, noi vi possiamo suggerire il cavo corretto per connettere il vostro telefono o la dock all'antenna scelta o aiutarvi a scegliere il prodotto migliore per le vostre esigenze.
Features:
Complete solution for using Iridium devices without sky view
Supports up to 3 satphones simultaneously
The only wireless Iridium-based communication solution that extends to 3km
Simple wireless installation
|
Iridium Optical repeater specifications |
||
| Downlink | ||
| Frequency range | 1500 - 1650MHz | |
| ODU Input/IDU output VSWR | 1:1.6 | |
| ODU RF input signal range [total power] | up to -20dBm | |
| Downlink Gain1 | 40dBm (±10dB Adjustable) | |
| Noise Figure | <5dB | |
| Uplink | ||
| Frequency range | 1500 - 1650MHz | |
| IDU Input/ODU Output VSWR | 1:1.6 | |
| IDU RF Input signal range [total power] | up to -20dBm | |
| Uplink Gain1 | 40dBm (±10dB Adjustable) | |
| Noise Figure | <5dB | |
| Optical Specifications | ||
| Required fiber type | Dual SMF-28 or equivalent [single mode] | |
| Optical wavelength | 1310 ±10nm | |
| IDU/ODU optical power output | -3dBm / 0.5mW (Min) | |
| Optical connector | SC/APC or FC/APC | |
| Fiber length | 3Km max (2dB). | |
| Physical Specifications | Indoor | Outdoor |
| RF connectors | Single SMA Female | Dual N-Tpe Female |
| Dimensions | 19” Wide 1U Chassis | 14" × 6" × 3" |
| Operating temperature | -20 to +55° C | -30 to +55° C |
