Suricate iridium link - IRIDKIT02

SORRY! we havent an updated price for this product. Please Click on REQUEST QUOTATION to receive the price.

Foxcom’s optical system is the ideal solution for mobile satellite connectivity in ships, oil rigs, military bunkers and other underground facilities.

Foxcom’s fully integrated Iridium optical solution provides a cost effective alternative to coax cable deployments. Harnessing the superior performance of fiber optics, Foxcom’s Iridium kit provides a coax free solution for in-building Iridium satellite coverage.

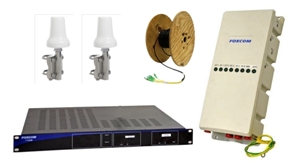

The kit consists of Foxcom’s Sat-Light 4005 series outdoor unit (ODU), a 7190M series chassis with dual power supplies (PS), dual outdoor Iridium antennas.

Iridium users can now enjoy the many benefits that optical fiber has to offer, such as improved signal quality, lightning protection, safety and ease of installation.

Included in the Package:
Suricate iridium link
SORRY! we havent an updated price for this product. Please Click on REQUEST QUOTATION to receive the price.

*Vous devriez demander UN DEVIS lorsque vous avez besoin d'acheter des accessoires spécifiques: par exemple une antenne et le câble afin que nous puissions vous donner le bon câble pour connecter votre antenne à votre appareil avec tous les adaptateurs que vous pourriez avoir besoin.

Complete solution for using Iridium devices without sky view
The only Iridium-based communication solution that extends to 3km
Simple installation
Iridium Optical Link specifications
Frequency range 1500 - 1650MHz
ODU Input/IDU output VSWR 1:1.6
ODU RF input signal range [total power] up to -20dBm
Downlink Gain1 40dBm (±10dB Adjustable)
Noise Figure <5dB
Frequency range 1500 - 1650MHz
IDU Input/ODU Output VSWR 1:1.6
IDU RF Input signal range [total power] up to -30dBm
Uplink Gain1 40dBm (±10dB Adjustable)
Noise Figure <5dB
Optical Specifications
Required fiber type Dual SMF-28 or equivalent [single mode]
Optical wavelength 1310 ±10nm
IDU/ODU optical power output -3dBm / 0.5mW (Min)
Optical connector FC/APC
Fiber length 3Km max (2dB).
Physical Specifications Indoor Outdoor
RF connectors Single SMA Female Dual N-Type Female
Dimensions 19” Wide 1U Chassis 14" × 6" × 3"
Operating temperature -20 to +55° C -30 to +55° C

1. Within Optical Range
All specifications are subject to change without notice.
