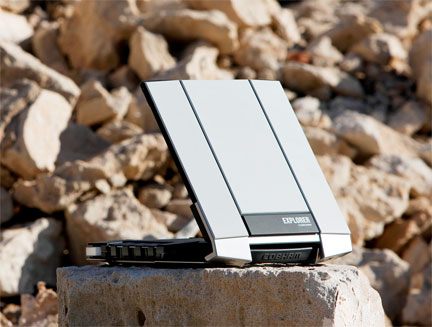

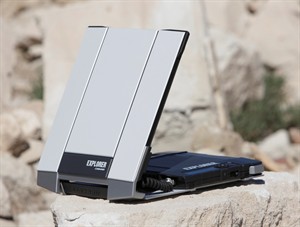

BGAN EXPLORER 710 Satellite TerminalTT710
Terrestre
Mobile
Maritimo
Data
Designed for Ease of Use and Speed
The EXPLORER 710 is the flagship Explorer BGAN terminal tied with the Hughes 9211 for the fastest speed possible of BGAN terminals. The carry portable office provides high-speed Internet access with multiple interfaces for countless applications. Connect your phone, laptop, smartphone or tablet to the 710's WiFi hotspot with a 100 meter WiFi range. Internet browsing, email, live video broadcasting, phone services, large file transfers and even video conferencing are all available with standard BGAN service. For video broadcasters, the new BGAN HDR service is available for a unshared 650 Kbps channel for reduced video dropouts.
NEW BGAN HDR SERVICE - For Live Video Broadcasters
BGAN HDR Service features four different channels of streaming rates including symmetric and asymmetric options so you only pay for the data you need. Expected full channel streaming rate of 650 Kbps – combined with optimized codecs, you'll see a real step-change in video quality. And recently, you can bond two 710 BGAN terminal for 1.2 Mbps speeds with the new Explorer 710 bonding firmware & software. All HDR services will utilize the current Inmarsat-4 (I-4) BGAN network.
Two-Part Terminal
The Explorer 710 is unlike other portable BGAN terminals in that the antenna may be separated from the transceiver and be mounted on an external pole mount, up to 100 meters away with the optional antenna cable. This setup is ideal for permanent installations where the antenna may need to be located in an awkward location.
Included in the Package:
? Explorer 710 terminal
? Explorer 710 terminal
? Carry case
? Rechargeable Li-Ion battery
? AC/DC power supply - Input 100 to 240 Volts AC
? International plug adapters - US, UK, EU, AU, China, N. Europe
? Short split cable. Connects transceiver and antenna
? 6' of Ethernet cable
? Quickstart guides and manuals on flash drive
Price:
5.122,70
EUR +VAT
EUR 6147.24 (VAT included)
(USD 5490.00)
EUR 6147.24 (VAT included)
(USD 5490.00)
*YOU SHOULD ASK A QUOTATION when you need to buy particular accessories; for example an antenna and cable so that we can give you the correct cable to connect your antenna to your device with all adapters that you may need.
Features:
-
One-button auto-connect to the Internet (after pointing). Easy to use by anyone
-
Operates with all BGAN Service Plans, Monthly or Prepaid, or Streaming.
-
Operates with any iPhone or Android phone for system control as well as calling.
-
Large display and keypad with ability to configure system without laptop
-
100 Meter Wi-Fi Access Point. Amazing WiFi range. Good for any wireless device.
-
Fastest LIVE video streaming speeds of 650 Kbps with the new BGAN HDR Service
-
Can achieve speeds of up to 1.2 Mbps with two 710s bonded together - more
-
Delivers standards Internet speeds of up to 492 Kbps - BGAN Service Plans
-
Port forwarding option. Pass a public IP to a connected device
-
Web interface for connectivity options, system status, usage logs, call logs, ect...
-
USB recharge port (.5 amp or 2 amp) for recharging smartphones and other devices
-
Portable size - the 710 dimensions are 11" W x 13" H x 2.13" inches (279 x 332 x 54 mm)
-
Operates in very cold or very hot weather at -25°C to +55°C / -13°F to +131°F
-
Directly connect any standard corded or cordless phone with a standard RJ-11 phone jack
-
Use your smartphone to make or receive calls using the Explorer Connect App
-
Calls are $0.99 cents per minute to any standard phone worldwide. Free incoming calls
-
SMS messages are $0.50 cents w/free incoming messages (iPhone texts are not charged)
-
Built in DHCP/NAT router with 2 LAN ports (PoE) and Wi-Fi. Fully configurable from web interface
-
Supports approved Group 3 fax machines, and ISDN (64 Kbps) capable devices
-
Night friendly LCD backlit display with 4 button controls
-
Intuitive browser interface screens for advanced controls
-
Li-Ion battery will last 36 hours in idle mode
-
CE, FCC, and IC certified
-
2 year standard warranty with 3 and 5 year extended warranties available
Specifications:
Dimensions 332 / 279 / 54 mm (13.07 / 10.98 / 2.13 inches)
Weight Total: 3,2 Kg (7 lbs) including Battery
Antenna weight: 1,7 Kg
Transceiver weight: 1,5 Kg
GLOBAL SERVICES:
Voice: aKbps AMBRE+2
Premium Voice: 3.1 kHz audio, 64 kbps
Standard IP: Up to 492 Kbps
Streaming IP: 32, 64, 128, 256 Kbps
HD Streaming: +650 Kbps (or +325 Kbps half channel HDR)
ISDN: UDI 64 Kbps / RDI 56 Kbps
SMS: Supported
TRACKING: Supported
INTERFACES:
1 x Analog RG11 Port
2 x LAN
1 x USB
1 x ISDN
1 x Transceiver antenna interface
1 x BGAN Sim Card Slot
1 x WI-FI Access Point (100 meter outdoor coverage)
POWER:
10-32 VDC
AC/DC Power suply: 100-240 Volt 65W output 19V DC
Battery: Lithium
@STANDBY 36 hours
@144 kbps duration 2,5 hours
OTHER FEATURES:
Support for BGAN bonding
Integrated SIP Server
Integrated WEB Server
Integrated ROUTER
Integrated WI-FI Access Point
Remote activation and Remote Management
Solar pannel powering
BATTERY HOT SWAP
M2M Applications Friendly
Dimensions 332 / 279 / 54 mm (13.07 / 10.98 / 2.13 inches)
Weight Total: 3,2 Kg (7 lbs) including Battery
Antenna weight: 1,7 Kg
Transceiver weight: 1,5 Kg
GLOBAL SERVICES:
Voice: aKbps AMBRE+2
Premium Voice: 3.1 kHz audio, 64 kbps
Standard IP: Up to 492 Kbps
Streaming IP: 32, 64, 128, 256 Kbps
HD Streaming: +650 Kbps (or +325 Kbps half channel HDR)
ISDN: UDI 64 Kbps / RDI 56 Kbps
SMS: Supported
TRACKING: Supported
INTERFACES:
1 x Analog RG11 Port
2 x LAN
1 x USB
1 x ISDN
1 x Transceiver antenna interface
1 x BGAN Sim Card Slot
1 x WI-FI Access Point (100 meter outdoor coverage)
POWER:
10-32 VDC
AC/DC Power suply: 100-240 Volt 65W output 19V DC
Battery: Lithium
@STANDBY 36 hours
@144 kbps duration 2,5 hours
OTHER FEATURES:
Support for BGAN bonding
Integrated SIP Server
Integrated WEB Server
Integrated ROUTER
Integrated WI-FI Access Point
Remote activation and Remote Management
Solar pannel powering
BATTERY HOT SWAP
M2M Applications Friendly
| Manufactor: | COBHAM SATCOM | Manufactor Website: |
| DESCRIPTION | TYPE | |
|---|---|---|
| INMARSAT Services Manual and Best Practices EN 2012 | Manual | Download |
| DESCRIPTION | TYPE | |
|---|---|---|
| COBHAM BGAN Explorer 701 Firmware 1.2 Notes | Firmware Upgrade Software | Download |
| TITLE | SUMMARY | RISOLUTION |
|---|---|---|
| Installing Inmarsat BGAN LaunchPad (Latest Versions) | Inmarsat LaunchPad is a standard user interface that can be used across all Land Portable, Land Mobile and FleetBroadBand terminals. LaunchPad users may also download and install, separate to LaunchPad, our Inmarsat-developed TCP Accelerator software which significantly enhances the performance of TCP traffic in the 'send' direction. |
Read Full Article |
