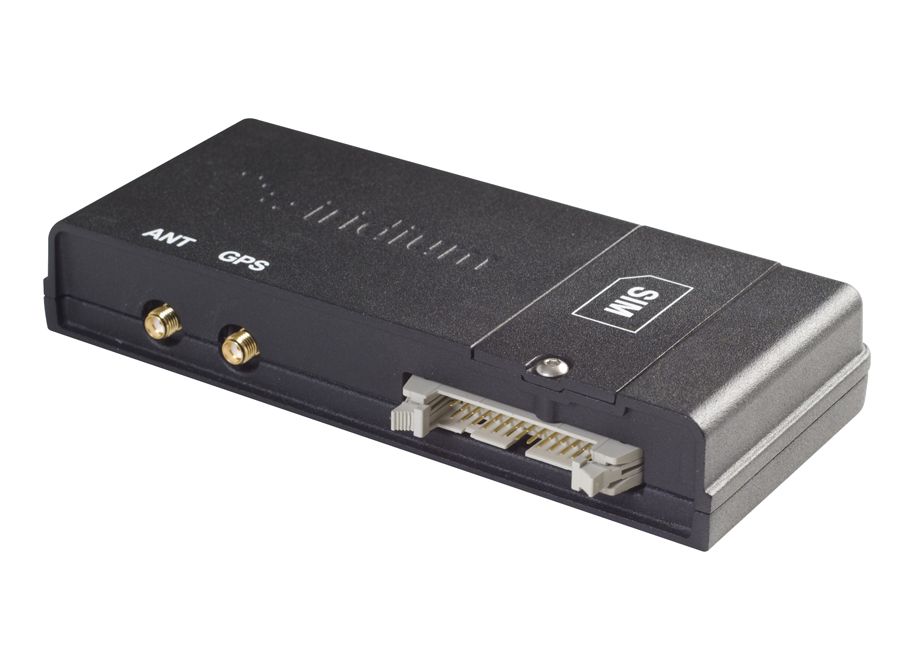

Iridium 9522B LBT Developers Modem

IR-00-102158





Services:
Data

Price: 1.442,04 EUR +VAT

The latest Iridium 9522B L-Band transceiver is a stand-alone module that provides developers a module that can be integrated into application based equipment or dedicated terminal developments.

The 9522B LBT is intended for incorporation into a final Iridium application / product that would supply power to the unit as well as the appropriate data and or voice interface.

Data applications are also supported through an RS-232 serial interface and the 9522B uses the DPL bus for digital voice communications.

Included in the Package:
Iridium 9522B LBT Developers Modem
Price: 1.442,04 EUR +VAT
EUR 1730.45 (VAT included)
(USD 1499.00)

*YOU SHOULD ASK A QUOTATION when you need to buy particular accessories; for example an antenna and cable so that we can give you the correct cable to connect your antenna to your device with all adapters that you may need.


Features:
. AT command set
. RS 232 Serial interface
. 26-pin IDC connector
. Global coverage
. Continuous circuit switched data
. 4.5 – 32V DC power input
. Cable assembly required
. Fully Certified
Specifications:
Mechanical
  • Length: 6.38 in. (162 mm)
  • Width: 3.16 in. (81 mm)
  • Depth: 1.10 in. (28 mm)
  • Weight (approximate): 0.93 lb (420 g)

Environmental
  • Operating temperature range: –30°C to +70°C
  • Operating humidity range: 25 to 75% RH
  • Storage temperature range: –40°C to +85°C
  • Storage humidity range: = 93% RH

RF Interface
  • Frequency range: 1616 MHz to 1626.5 MHz
  • Duplexing method: TDD (Time Domain Duplex)
  • Oscillator stability: ± 1.5 ppm
  • Input/output impedance: 50 ohms
  • Multiplexing method: TDMA/FDMA
Manufactor: Manufactor Website:

www.iridium.com
PREPAID AIRTIME PLANS:

IRIDIUM PRE PAY - NO RECHARGE Promotion Details

IRIDIUM PREPAY WORLD Details

IRIDIUM PREPAY LATIN AMERICA Details

IRIDIUM PREPAY MIDDLE EAST AFRICA (

Tariff plan "Middle East, Africa"

500 minutes voucher with a 12 months validity period.

Within the countries below 500 minutes into all fixed and mobile communications networks are to you at the disposal.

The voucher can only used for SIM cards that are bought in this shop.

There is one vouchers at the tariff plan Middle East, Afca. By recharging this vouchers to an already in this tariff plan activated SIM the given minutes will be added to the remaining minutes, the expiry period is reset to the validity of the recharged voucher.



Calling rates tariff plan Middle East, Africa:

500 minutes, 12 months validity, 30,000 units
outgoing calls per minute originating in Middle East/Africa to text message
Iridium, Mailbox fixed or mobile phones other satelite networks
48 units 60 units 906 units 30 units



All incoming calls are free for the Iridium subscriber (but not for the caller!), except for two-stage dialing calls, which are billed at the outgoing call rate.

outgoing data connections from Africa or the Middle East costs 102 units.

One in this tariff plan activated SIM card cannot be extended. It is not possible to refresh the card with minutes.


Countrylist Africa:

Algeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cameroon, Cape Verde, Central African Republic, Chad, Congo, Dem Republic of Congo, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea Bissau, Juan de Nova Island, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritania, Mauritius, Mayotte, Morocco, Mozambique, Namibia, Niger, Senegal, Sierra Leone, Somalia, South Africa, Tanzania, Tunisia, Uganda, Zambia, Zimbabwe



Countylist Middle East:

Cyprus, Jordan, Kuwait, Lebanon, Oman, Saudi-Arabia, Turkey, United Arab Emirate.



)Details

IRIDIUM PREPAY NORTHERN LIGHTS Details

POSTPAID AIRTIME PLANS:

IRIDIUM .ADVANCE 100 MINUTES PLAN Details

IRIDIUM .POWER 250 MINUTES PLAN Details

IRIDIUM .SEASONAL 10 MINUTES PLAN Details

IRIDIUM .STARTER 25 MINUTES PLAN Details

IRIDIUM EMERGENCY (For Recreational usage)Details

IRIDIUM SIM CARD Register Only Used With SBD Details

IRIDIUM WORLD DATA BASIC Details

Nessun Risultato Trovato

DESCRIPTION TYPE
IRIDIUM 9522B - Brochure English Brochure Download
Nessun Risultato Trovato
TITLE SUMMARY RISOLUTION
Iridium- Direct Internet and PPP port blocking

As from 1st June 2005, Iridium Satellite LLC will be blocking many TCP/UDP ports in an effort to help combat against malicious programs and viruses. This change to the Iridium service will not affect the majority of users of applications such as Email, Web-browsing or FTP for example. However, specalist equipment or applications may use uncommon ports which will cease to work.



 Read Full Article
RETURN POLICY

7 Day Return for Refund / Replacement Policy, this means that if your product is faulty due to a manufactures fault and you wish to return a product(s) bought from us, you are totally free to do so, provided that the return meets the following conditions, we will give you a full refund or replacement at your choosing, no re-stocking fee deducted and no questions asked! Conditions are as follows: Item(s) are purchased from our ebay store. Item(s) are returned within 14 days of receipt to our local agent. Item(s) are returned with a copy of your receipt / invoice. Item(s) are returned accompanied by order receipt and return authorisation number. Item(s) are in brand new condition e.g. product packaging must be complete or this will affect your right to a refund or replacement. If you choose to have your money refunded we will refund you the total amount paid less postage, within 72 hours. This does not affect your statutory rights.
