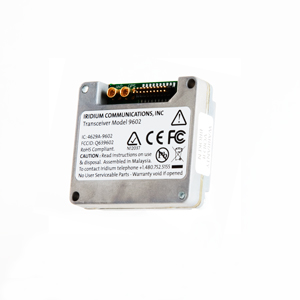

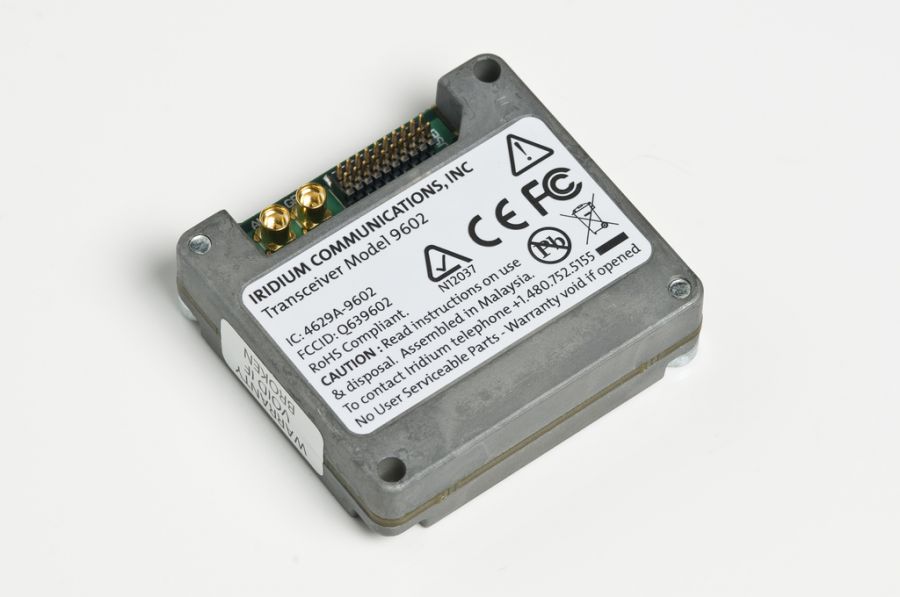

Iridium 9602 SBD Transceiver

IR-9602-OEM






Pris: 273,87 EUR +MOMS

The Iridium 9602 SBD transceiver, designed to be integrated into a wireless data application with other host system hardware and software, provides a complete solution for a specific application or vertical market. The Iridium 9602 is ideal for M2M solutions, including tracking of maritime vessels, equipment monitoring, and automatic vehicle location.



HOW IT WORKS:

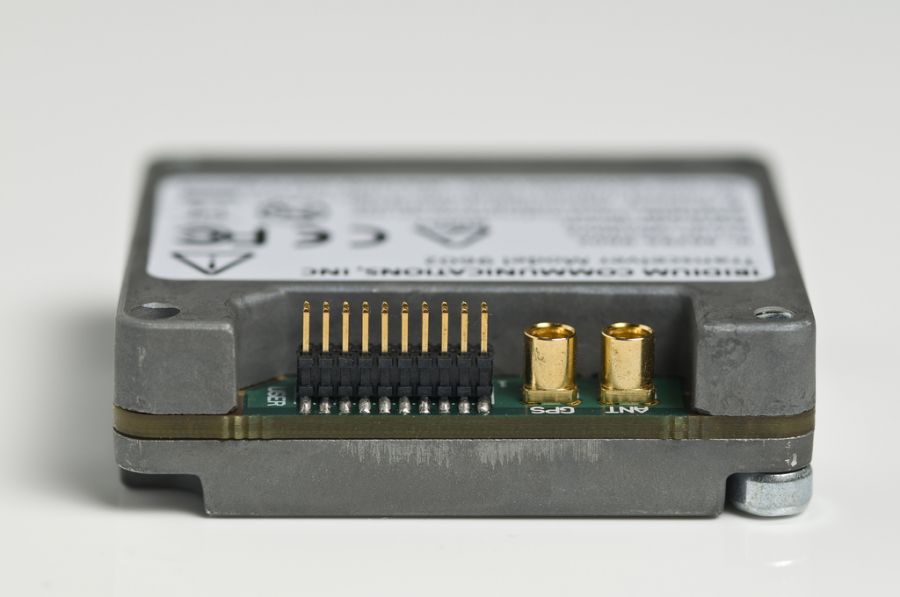

The Iridium 9602 is a single-board transceiver provided as a ‘black box’ transceiver module. All device interfaces are provided by a single multi-pin interface connector, in addition to the antenna connector. Only the core transceiver is provided with the 9602. All other end user Field Application functions such as GPS, microprocessor based logic control, digital and analog inputs, digital and analog outputs power supply and antenna must be provided by the solution developer. The device interface across the user connector consists of a serial-data interface, DC power input, network available output and a power on/off control line. The Iridium 9602 does not incorporate, nor require, a Subscriber Identity Module (also known as a SIM Card) to be inserted into the Transceiver. The Iridium 9602 is intended to be used as a transceiver module fitted within another host system.

I paketet ingår:
Iridium 9602 SBD Transceiver
Pris: 273,87EUR +MOMS
EUR 328.64 (VAT included)
(USD 319.00)

* DU BÖR FRÅGA EFTER EN OFFERT när du behöver köpa särskilda tillbehör, till exempel en antenn och en kabel så att vi kan ge dig den rätta kabeln för att ansluta antennen till enheten med alla adaptrar som du kan behöva.


Funktioner:
  • Single board transceiver

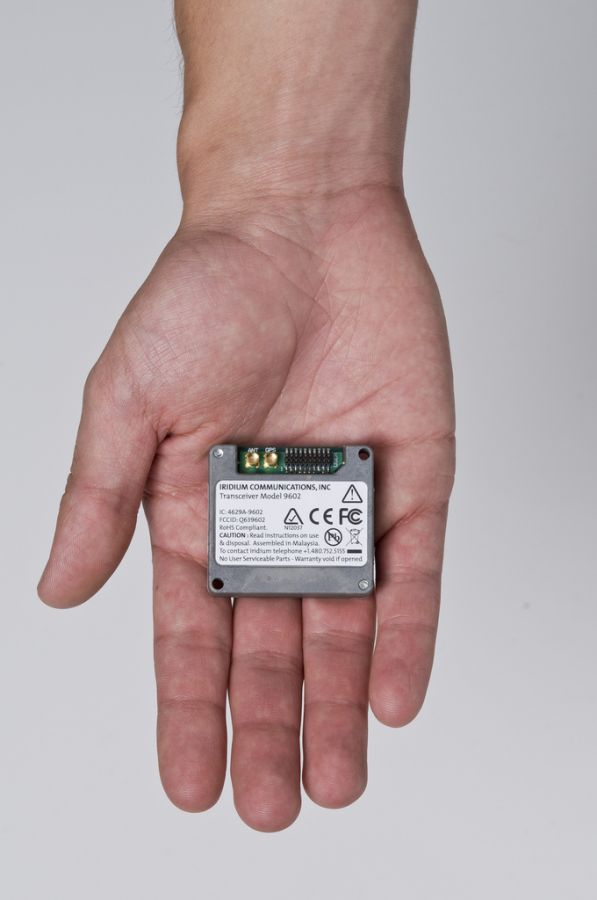

  • Small form factor
  • No SIM card
  • Designed to be incorporated into an OEM solution
  • RoHS compliant
Specifikationer:

Mechanical Dimensions

  • Length 41.0 mm
  • Width 45.0 mm
  • Depth 13.0 mm
  • Weight 3.0g

Environmental Specifications

  • Operating Temperature Range -40ºC to + 85ºC
  • Operating Humidity Range 75% RH
  • Storage Temperature Range -40ºC to + 85ºC
  • Storage Humidity Range 93% RH

RF Parameters

  • Frequency Range 1616 MHz to 1626.5 MHz
  • Duplexing Method TDD (Time Domain Duplex)
  • Input/Output Impedance 50
  • Multiplexing Method TDMA/FDMA

DC Power Input

  • Idle Current (average) 45mA
  • Idle current (peak) 195mA
  • Transmit Current (peak) 1.5A
  • Transmit Current (average) 190mA
  • Receive Current (peak) 195mA
  • Receive Current (average) 45mA
  • SBD message transfer – average current 190mA
  • SBD message transfer – average power 1.0W

Manufactor: Manufactor Website:

www.iridium.com
