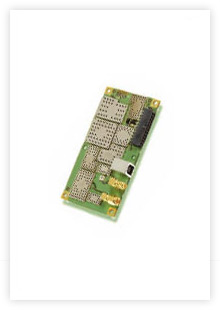

Globalstar GSP-1720 satellite data and voice module (Board Only) - GSP-1720





Usage:
Terrestre
Mobile
Maritimo
Aereo
Tjänster:
Voice
Data
Fax
SMS
E-mail

Pris: 199,00 EUR +MOMS

The GSP-1720 satellite data and voice module enables full two-way data and voice capability, allowing the development of new and creative tracking and monitor & control applications to full-featured fixed telephone service for remote areas.


For Supervisory Control and Data Acquisition (SCADA) applications, the GSP-1720 Satellite Data/Voice Module (SDVM) can provide either Direct or Dial-up Internet as well as asynchronous computer to computer connectivity. These options provide communications with land and marine-based equipment, while complementing mobile and stationary field solutions.

Mobile or stationary, the GSP-1720 helps you monitor, control or track assets remotely through the Globalstar satellite network – affordably and with low-power requirements.

Designed for multiple applications, the GSP-1720 Module offers a flexible solution for the Original Equipment Manufacturer (OEM), as well as providing a developer's kit for accelerated time to market. GSP1720 Brochure


  • Applications SCADA
  • Telemetry
  • Remote Monitoring
  • Environmental Monitoring
  • Aviation
  • Process Control
  • Remote Diagnostics
I paketet ingår:
Globalstar GSP-1720 satellite data and voice module (Board Only)
Pris: 199,00 EUR +MOMS
EUR 238.80 (VAT included)
(EUR 199.00)

* DU BÖR FRÅGA EFTER EN OFFERT när du behöver köpa särskilda tillbehör, till exempel en antenn och en kabel så att vi kan ge dig den rätta kabeln för att ansluta antennen till enheten med alla adaptrar som du kan behöva.


Funktioner:
Satellite Data/Voice Module Features
  • Globalstar Satellite Data Service
  • Globalstar Satellite Voice Service

Data Services
  • Direct Internet or Direct Dial-up Circuit Switched Data
  • 9.6 kbps full duplex service (express data available up to 19 kbps)
  • Utilizes standard and enhanced “Hayes Modem” AT commands
  • Compatible with Windows 98/2000/XP/NT/ME/Vista
  • Dial-up networking, Asynchronous data communications static IP
  • Short Messaging Service (SMS): 35 character incoming

Voice Services
  • Crystal clear voice quality: Superior CDMA digital satellite quality
  • Automatic system select: Just apply power to the unit and your Globalstar module will automatically seek out the Globalstar network.
GSP-1720 Includes
  • The Satellite Data Voice Module (SDVM) OEM board
Specifikationer:
Operating Frequency
Transmit: 1610 - 1625 MHz
Receive: 2484-2499 MHz

Maximum Transmit Power
Passive antenna: +26 dBm (400 mW)
Active antenna: +29 dBm (800 mW)

DC Input Voltage +4.7 V to +5.1 V (7.0 V optional for active antenna)

Power Consumption Estimates @ 12V Input:
State
Min
Typical
Max
Units
Shutdown
0
0.65
1.0
mW
Standby
0.5
0.50
1.1
W
Transmit
2.2
3.65
5.0
W

Interfaces
User Ports 22 pin Molex connector with pin-outs for data port, auxillary port (control/NEMA), audio and power.
USB-B connector for data and diagnostics connectivity.
Module Antenna Connectors: TX SMA female, RX SMA Male
Antenna Connectors:
Passive: TX SMA Female, RX SMA Female

Active: TX SMA male, RX SMA female, Diagnostic Monitor and Software Upgrade USB-B Connector

Module Dimensions: 4.7 in (119 mm) x 2.4 in (65 mm) x 0.59 in (15 mm)
Module Weight: less than 2.15 ounces (60 grams)
Certificaiton FCC, ETSI, IC
Module Environmental Conditionsn Operating: -22 to +140ºF (-30 to +60ºC)
Storage: -40 to +185ºF (-40 to +85ºC)

Coverage may vary. Specifications subject to change without notice.
Manufactor: GLOBALSTAR
