Beam Terra 400 Land Fixed Phone - TR400

Services:
DATA

Data

Prix: 1.568,88 EUR +TVA

Description
Traits
Forfait
Accessories
Photo Gallery
Vidéo

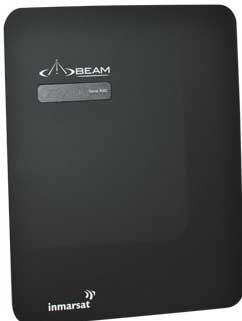

Terra 400 is a slimline terminal purposely designed for use in fixed site, emergency service applications where permanent reliable communications services are required. Featuring an intelligent RJ11/POTS interface, it enables connection of up to 5 standard corded/cordless phones or integration to a PABX system. It can support cable runs of up to 600m (2000 feet) with in-built intelligence to support standard ring, busy and dial tones. Other key features of the Terra 400 include: a high quality IP53 rated enclosure (rainproof when wall mounted), USB data access and wall or desk mountable. The Terra 400 is designed to operate with the Inmarsat Link Phone service and is supplied with a dedicated directional/fixed antenna (Passive) system to provide a completely integrated solution that is ready for use anytime.

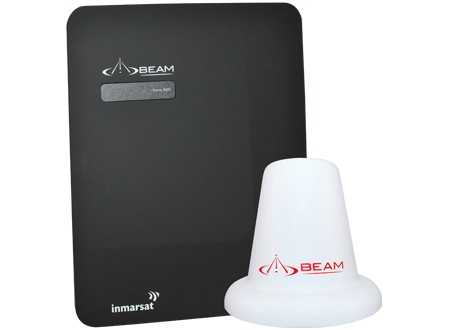

Included in the Package:

Terra 400 Terminal
ISD700 Directional/Fixed Antenna (Passive)
110-240V AC Plug Pack 15v DC Out
10-32V DC Power Cable
USB Cable
2 x screws for wall mounting
User Manual
Quick Start Guide

Prix: 1.568,88 EUR +TVA
EUR 1882.66 (VAT included)
(USD 1690.00)

*Vous devriez demander UN DEVIS lorsque vous avez besoin d'acheter des accessoires spécifiques: par exemple une antenne et le câble afin que nous puissions vous donner le bon câble pour connecter votre antenne à votre appareil avec tous les adaptateurs que vous pourriez avoir besoin.

Caractéristiques:
Design

High quality enclosure

IP53 Rated (rainproof)*

Wall mounting option

Integrated antenna connections

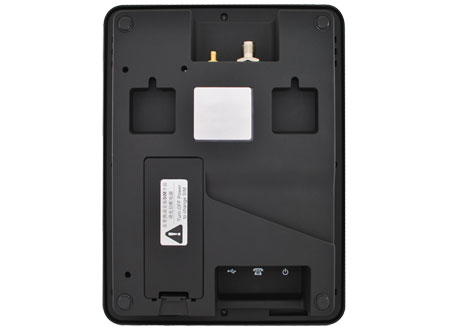

Rear SIM card port

Power

10 – 32V DC Input

110/240V AC Plug pack (included)

INTELLIGENT POTS / RJ11 INTERFACE

Support up to 600m (2000 feet) of RJ11 cable runs

Dial, ring & busy tones

Integrated to PABX System

Support standard corded, cordless and DECT phones

Auto-dial & speed dials available

OTHER KEY FEATURES

Status LED indication for registration/signal, call and messaging

USB data access

Basic SMS support from Falcon application (via USB port)

Rear access SIM port

12 month warranty

* IP53 rated when wall mounted only.

Specifications:
Power Specifications Average Power Consumption (Passive Antenna Connected) Standby Transmit Sleep Mode Peak Current Current @ 15V DC 0.17A 0.29A 4mA 0.56A Power 2.5W 4.4W 60mW 8.4W Physical Specifications Dimensions Weight TC400 only Total Kit Weight 240 x 190 x 53 (mm) 0.58kg TBD 8.0 x 7.5 x 2.1 (inches) 1.28lbs TBD Environment Specifications Operating Range Storage Humidity Degrees °C -20°C to +55°C -30°C to +80°C TBD Degrees °F -4°F to +131°F -22°F to +176°F Transceiver Inmarsat-4 Satellite GMR-2+ Frequency Bands Tx Operating Frequency Rx Operating Frequency RF Output Impedance Carrier frequencies TX Modulation RX Modulation 1626.5 - 1660.5 MHz 1518 ? 1565 MHz (Inmarsat) 1565.19 ? 585.65 MHz (GPS) 50 Ohms Channel 0 = 1626.525 MHz Channel 169 = 1660.475 MHz GMSK OQPSK Connectors / Interfaces POTS/RJ11 Antenna GPS Antenna 10-32V DC Configuration /Data RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance TNC-Female SMA-Female 4-way microFit (AC/DC adaptor, or DC lead) USB Mini B Certifications Inmarsat Type Approval FCC CE Compliance Electrical Safety RoHS Industry Canada C-Tick IP53 Rating 5 = Protected against dust limited ingress (no harmful deposits). 3 = Protected against direct sprays of water up to 60° from the vertical.

Manufactor:

BEAM

Manufactor Website:

www.beamcommunications.com

Forfait prépayé:

ISATPHONE PREPAID Détails

Plan de services postpayés taux:

ISATPHONE POSTPAID ALLOWANCE 10 Détails

ISATPHONE POSTPAID ALLOWANCE 60 Détails

ISATPHONE POSTPAID GEOGRAPHIC North America 10 minutes Détails

ISATPHONE POSTPAID GEOGRAPHIC North America 150 minutes Détails

ISATPHONE POSTPAID GEOGRAPHIC North America 250 minutes Détails

ISATPHONE POSTPAID GEOGRAPHIC North America 50 minutes Détails

dCable IsatDOCK/TERRA 10m An...

EUR 83,55 + IVA
(USD 90,00 )

details

dCable IsatDOCK/TERRA 20m An...

EUR 208,87 + IVA
(USD 225,00 )

details

dCable IsatDOCK/TERRA 30m An...

EUR 891,20 + IVA
(USD 960,00 )

details

dCable IsatDOCK/TERRA 40m An...

EUR 1.162,74 + IVA
(USD 1.252,50 )

details

dCable IsatDOCK/TERRA 50m An...

EUR 1.232,36 + IVA
(USD 1.327,50 )

details

dAC 110-240v Plug Pack - For...

EUR 117,49 + IVA
(USD 126,56 )

details

Brochure
Manuels
Driver & Software
DU FIRMWARE & MISES À JOUR
SUPPORT

DESCRIPTION	TYPE
BEAM Oceana Terra Comparison Chart	Comparison Chart	Download
BEAM Terra 400 brochure	Brochure	Download

DESCRIPTION	TYPE
INMARSAT Services Manual and Best Practices EN 2012	Manual	Download
BEAM FALCON - Manual	Manual	Download
BEAM Terra 400 User Manual	Manual	Download
BEAM Terra 400 Quick Start Guide	Quick Start guide	Download

DESCRIPTION	TYPE
BEAM FALCON - Software ver. 1.5	Software and Firmware Upgrade Combined Tool	Download
BEAM FALCON - Software ver. 1.4	Software and Firmware Upgrade Combined Tool	Download

DESCRIPTION	TYPE
BEAM FALCON - Software ver. 1.5	Software and Firmware Upgrade Combined Tool	Download
BEAM FALCON - Software ver. 1.4	Software and Firmware Upgrade Combined Tool	Download
BEAM FALCON - Firmware Upgrade Instructions for OCEANA/TERRA/ISATPHONE PRO	Firmware	Download

TITLE	SUMMARY	RISOLUTION
Can i use data with my Oceana and Terra Units?		Read Full Article
How do i upgrade the firmware on my IsatDock or Oceana or Terra terminals?		Read Full Article
